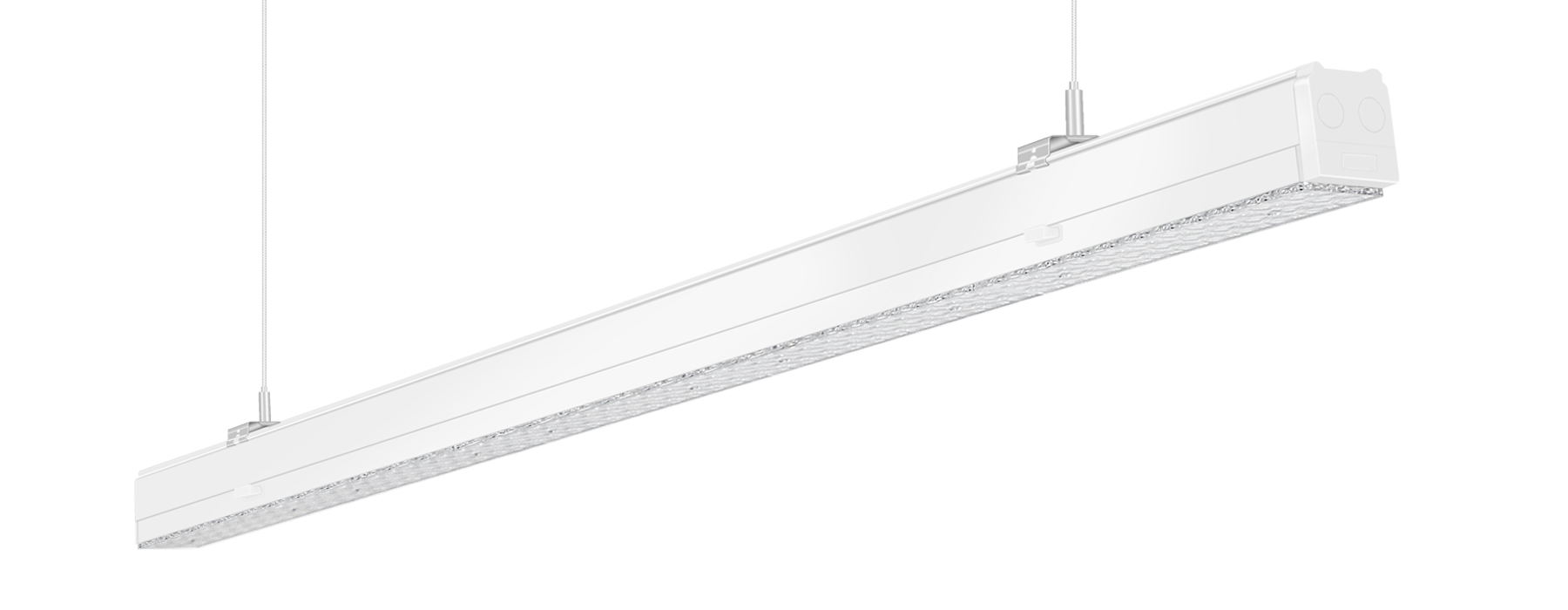

T-Trunk
T-Trunk is an innovative linear luminaire with a flexible design. It is designed for simple installation, easy light adjustment and quick mounting and demounting. With its almost invisible interconnection function, the luminaire creates a uniform light line without visible transitions.
Installation
Luminaire for suspended in wire - also available for surface mounting on ceiling. Mounting brackets are included for installation. Luminaire is connected directly. Driver is integrated in the luminaire.
Armature
T-Trunk is available in two different sizes, 1438 x 65 x 70mm / 2012 x 65 x 70mm, is made of aluminium and weighs between 1.3 - 2.1 kg. The luminaire has an IP40 rating and is impact resistant up to IK02. AC 220-240. T-Trunk is available in RAL9016 (white) and RAL9003 (black) as standard.
LED information
T-Trunk is available as standard in 46W / 53W / 67W / 75W depending on luminaire size. Ra80 - 3000K or 4000K. 175-180 lm/W depending on size selection. Operational lifetime (L80B10) 50,000 hours at 25 degrees.
Light control
T-Trunk is available with on/off or DALI control.
LED driver life expectancy >70,000 hours. The luminaire's certification is under CIE EN 60598 1-2 and including EN550 15/EMC.
| Model: | T-Trunk |
| Size: | 1438 x 65 x 70mm |
| mA/W: | 46W / 53W / 67W / 75W |
| Optics: | PMMA / PC - Beam Angle option: 30° / 60° / 90° / 120° |
| Ra / Kelvin: | Ra80 - 3000K / 4000K |
| Assembly: | Suspended |
| IP / IK: | IP40 / IK02 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 1.3 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / DALI |
| Starting current / Leakage current: | 17.8A peak - 288us / <0.5mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.006 / SVM: 0.003 |
| Fuse C10: | 22 per fuse |
| Luminous flux: | 180 lm/W |
| Model: | T-Trunk |
| Size: | 2012 x 65 x 70mm |
| mA/W: | 46W / 53W / 67W / 75W |
| Optics: | PMMA / PC - Beam Angle option: 30° / 60° / 90° / 120° |
| Ra / Kelvin: | Ra80 - 3000K / 4000K |
| Assembly: | Suspended |
| IP / IK: | IP40 / IK02 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 2.1 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / DALI |
| Starting current / Leakage current: | 17.8A peak - 288us / <0.5mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.006 / SVM: 0.003 |
| Fuse C10: | 22 per fuse |
| Luminous flux: | 175 lm/W |
