T-Tornado
Tornado is an efficient and streamlined industrial luminaire. Tornado is the perfect choice for illuminating both large and small technical and industrial environments as it emits an even and powerful light. The luminaire is available for suspended in wire or mounted directly on the ceiling. The luminaire can be used indoors or outdoors under a canopy.
Installation
Luminaire for suspended in wire - also available for surface mounting directly on ceiling or wall. Mounting brackets are included for installation. Luminaire can be connected directly or via through-wiring. Driver is integrated in the luminaire.
Armature
T-Tornado is available in two different lengths 1260 x 63 x 84 mm or 1560 x 63 x 84 mm, is made of aluminium and weighs between 2.2 - 2.6 kg depending on the choice of luminaire. The luminaire has an IP65 rating and is impact resistant up to IK08. AC 220-240. Supplied as standard in RAL9016
LED information
T-Tornado is available as standard between 36W - 55W depending on size selection. Ra80 - 3000K or 4000K. Standard - 130lm-140lm/w.
Operational lifetime (L80B10) >50,000 hours at 25 degrees.
Light control
T-Tornado is available with On/off, DALI control.
LED driver life expectancy >70,000 hours. The luminaire's certification is under CIE EN 60598 1-2 and including EN550 15/EMC.
| Model: | T-Tornado |
| Size: | 1260 x 84 x 63mm |
| mA/W: | Standard - 36W / 42W / 46W |
| Optics: | Opal shielding - 120º beam angle |
| Ra / Kelvin: | Ra80/90 - 3000K / 4000K |
| Assembly: | Suspended |
| IP / IK: | IP65 / IK10 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 2.2 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct / Through wiring |
| Steering: | On/Off |
| Starting current / Leakage current: | 21A peak - 272us / <0.5mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.000 / SVM: 0.002 |
| Fuse C10: | 25 per fuse |
| Luminous flux: | 130-140lm/W |
| Model: | T-Tornado |
| Size: | 1560 x 84 x 63mm |
| mA/W: | Standard - 50W |
| Optics: | Opal shielding - 120º beam angle |
| Ra / Kelvin: | Ra80/90 - 3000K / 4000K |
| Assembly: | Suspended |
| IP / IK: | IP65 / IK10 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 2.2 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct / Through wiring |
| Steering: | DALI |
| Starting current / Leakage current: | 4.125A peak - 174us / <0.65mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.009 / SVM: 0.003 |
| Fuse C10: | 27 per fuse |
| Luminous flux: | 130-140lm/W |
| Model: | T-Tornado |
| Size: | 1560 x 84 x 63mm |
| mA/W: | Standard - 40W / 50W / 55W |
| Optics: | Opal shielding - 120º beam angle |
| Ra / Kelvin: | Ra80/90 - 3000K / 4000K |
| Assembly: | Suspended |
| IP / IK: | IP65 / IK10 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 2.2 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct / Through wiring |
| Steering: | On/Off |
| Starting current / Leakage current: | 21A peak - 272us / <0.5mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.009 / SVM: 0.003 |
| Fuse C10: | 25 per fuse |
| Luminous flux: | 130-140lm/W |
| Model: | T-Tornado |
| Size: | 1260 x 84 x 63mm |
| mA/W: | Standard - 50W |
| Optics: | Opal shielding - 120º beam angle |
| Ra / Kelvin: | Ra80/90 - 3000K / 4000K |
| Assembly: | Suspended |
| IP / IK: | IP65 / IK10 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 2.2 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct / Through wiring |
| Steering: | DALI |
| Starting current / Leakage current: | 4.125A peak - 174us / <0.65mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.009 / SVM: 0.003 |
| Fuse C10: | 27 per fuse |
| Luminous flux: | 130-140lm/W |

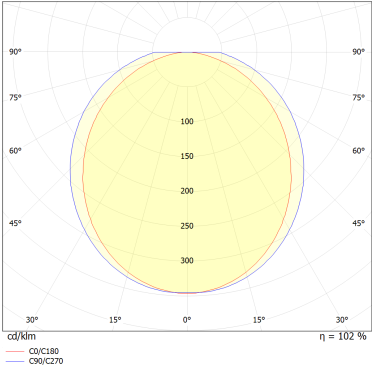

120º beam angle
1210 mm
1510 mm
Reference: Production hall, Haarslev industries A/S
