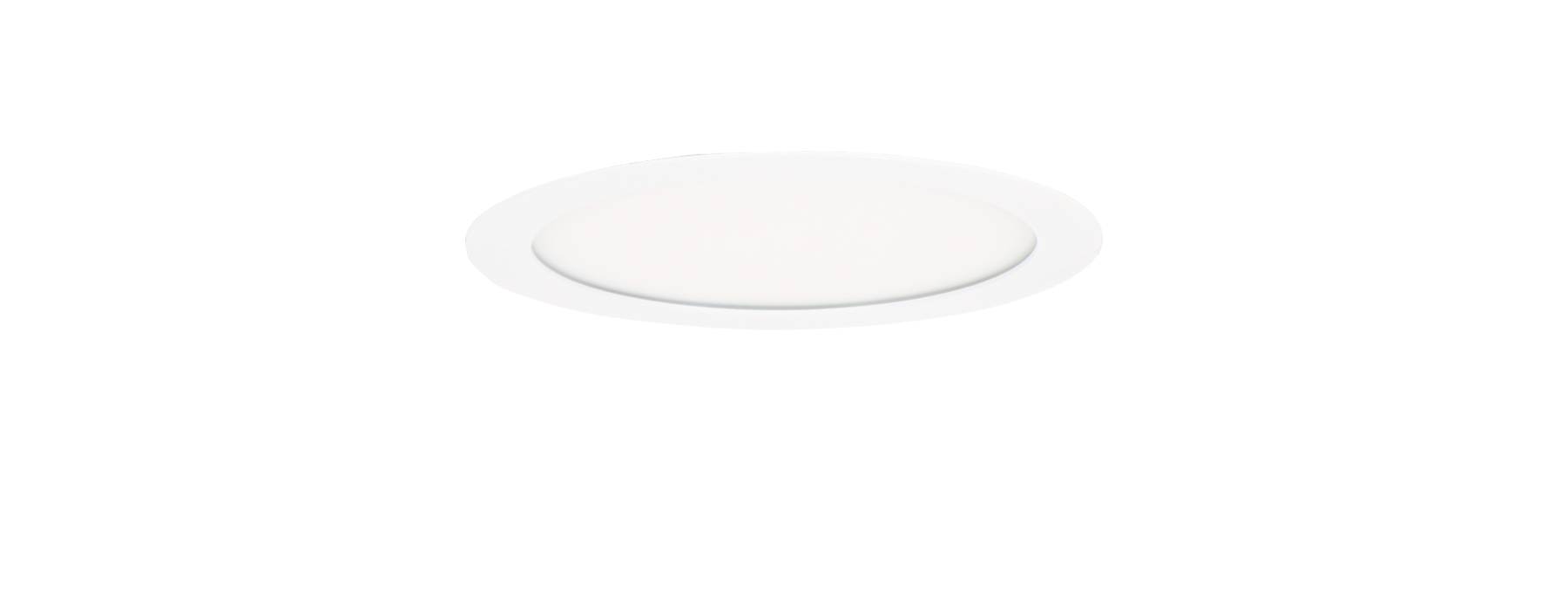

T-Hee built-in
T-Hee is a simple and timeless luminaire that is available for both recessed and surface mounting. The recessed luminaire has a narrow design with minimal installation height. The technology is based on sideview, where the light is directed horizontally towards the centre from the edge of the luminaire and a unique uniformity of light distribution is achieved. The luminaire is available with opal or mircoprismatic diffuser. T-Hee is also available in 5 different sizes.
Installation
Designer luminaire for recessed installation - also available for surface mounting. Mounting spring included - number depends on the size of the luminaire. Connection of the luminaire is direct. Driver is separate and mounted on the back of the luminaire.
Armature
T-Hee is available in 5 different sizes - Ø175, Ø238, Ø298, Ø400 and Ø498, is made of aluminium and weighs between 0.5 - 2.4 kg depending on size. The luminaire has a tightness class of IP20 or IP44 and is impact resistant up to IK04. AC 220-240. Opal / Mircoprismatic diffuser. Available in RAL9016 (white) as standard.
LED information
T-Hee is available with Ra80 - optional Ra90 and with 3000/4000 kelvin. Standard wattage 16W, 23W, 30W, 35W or 40W depending on size selection. Operational lifetime (L80B10) 50,000 hours at 25 degrees.
Light control
T-Hee comes standard with On/Off, 1-10V / DALI or sensor
LED driver life expectancy >100,000 hours. The luminaire's certification is under CIE EN 60598 1-2 and including EN550 15/EMC.
| Model: | T-Hee Ø180 |
| Size: | Ø175 mm x 12 mm (Cutout: Ø160 mm) |
| mA/W: | Standard - 350mA/12W |
| Optics: | Opal - 110° beam angle / Microprismatic - 90° beam angle |
| Ra / Kelvin: | Ra80 - 3000K / 4000K (Ra90 option) |
| Assembly: | Recessed |
| IP / IK: | IP20 - Option: IP44 / IK04 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 0.5 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / 1-10V / DALI / Sensor |
| Starting current / Leakage current: | 3.95A peak - 180us / 0.36mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.002 / SVM: 0.003 |
| Fuse C10: | 46 per fuse |
| Luminous flux: | 120lm/W |
| Model: | T-Hee Ø240 |
| Size: | Ø238 mm x 12 mm (Cutout: Ø220 mm) |
| mA/W: | Standard - 550mA/20W |
| Optics: | Opal - 110° beam angle / Microprismatic - 90° beam angle |
| Ra / Kelvin: | Ra80 - 3000K / 4000K (Ra90 option) |
| Assembly: | Recessed |
| IP / IK: | IP20 - Option: IP44 / IK04 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 0.7 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / 1-10V / DALI / Sensor |
| Starting current / Leakage current: | 3.95A peak - 180us / 0.36mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.002 / SVM: 0.003 |
| Fuse C10: | 46 per fuse |
| Luminous flux: | 120lm/W |
| Model: | T-Hee Ø300 |
| Size: | Ø298 mm x 12 mm (Cutout: Ø280 mm) |
| mA/W: | Standard - 650mA/24W |
| Optics: | Opal - 110° beam angle / Microprismatic - 90° beam angle |
| Ra / Kelvin: | Ra80 - 3000K / 4000K (Ra90 option) |
| Assembly: | Recessed |
| IP / IK: | IP20 - Option: IP44 / IK04 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 1.2 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / 1-10V / DALI / Sensor |
| Starting current / Leakage current: | 7.9A peak - 180us / 0.41mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.002 / SVM: 0.003 |
| Fuse C10: | 33 per fuse |
| Luminous flux: | 116lm/W |
| Model: | T-Hee Ø400 |
| Size: | Ø400 mm x 12 mm (Cutout: Ø390 mm) |
| mA/W: | Standard - 1000mA/35W |
| Optics: | Opal - 110° beam angle / Microprismatic - 90° beam angle |
| Ra / Kelvin: | Ra80 - 3000K / 4000K (Ra90 option) |
| Assembly: | Recessed |
| IP / IK: | IP20 - Option: IP44 / IK04 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 1.6 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / 1-10V / DALI / Sensor |
| Starting current / Leakage current: | 7.9A peak - 180us / 0.41mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.002 / SVM: 0.003 |
| Fuse C10: | 33 per fuse |
| Luminous flux: | 120lm/W |
| Model: | T-Hee Ø500 |
| Size: | Ø498 mm x 12 mm (Cutout: Ø480 mm) |
| mA/W: | Standard - 1100mA/40W |
| Optics: | Opal - 110° beam angle / Microprismatic - 90° beam angle |
| Ra / Kelvin: | Ra80 - 3000K / 4000K (Ra90 option) |
| Assembly: | Recessed |
| IP / IK: | IP20 - Option: IP44 / IK04 |
| Colour: | Standard - RAL9016 |
| Material: | Aluminium |
| Weight kg: | 2.4 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / 1-10V / DALI / Sensor |
| Starting current / Leakage current: | 7.9A peak - 180us / 0.41mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.002 / SVM: 0.003 |
| Fuse C10: | 33 per fuse |
| Luminous flux: | 120lm/W |
Microprismatic - 90° beam angle

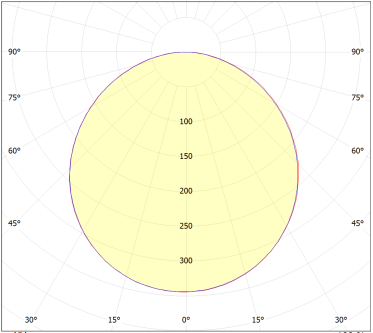

Opal - 110° beam angle
T-Hee - Ø180 mm
T-Hee - Ø400 mm
T-Hee - Ø240 mm
T-Hee - Ø500 mm
T-Hee - Ø230 mm

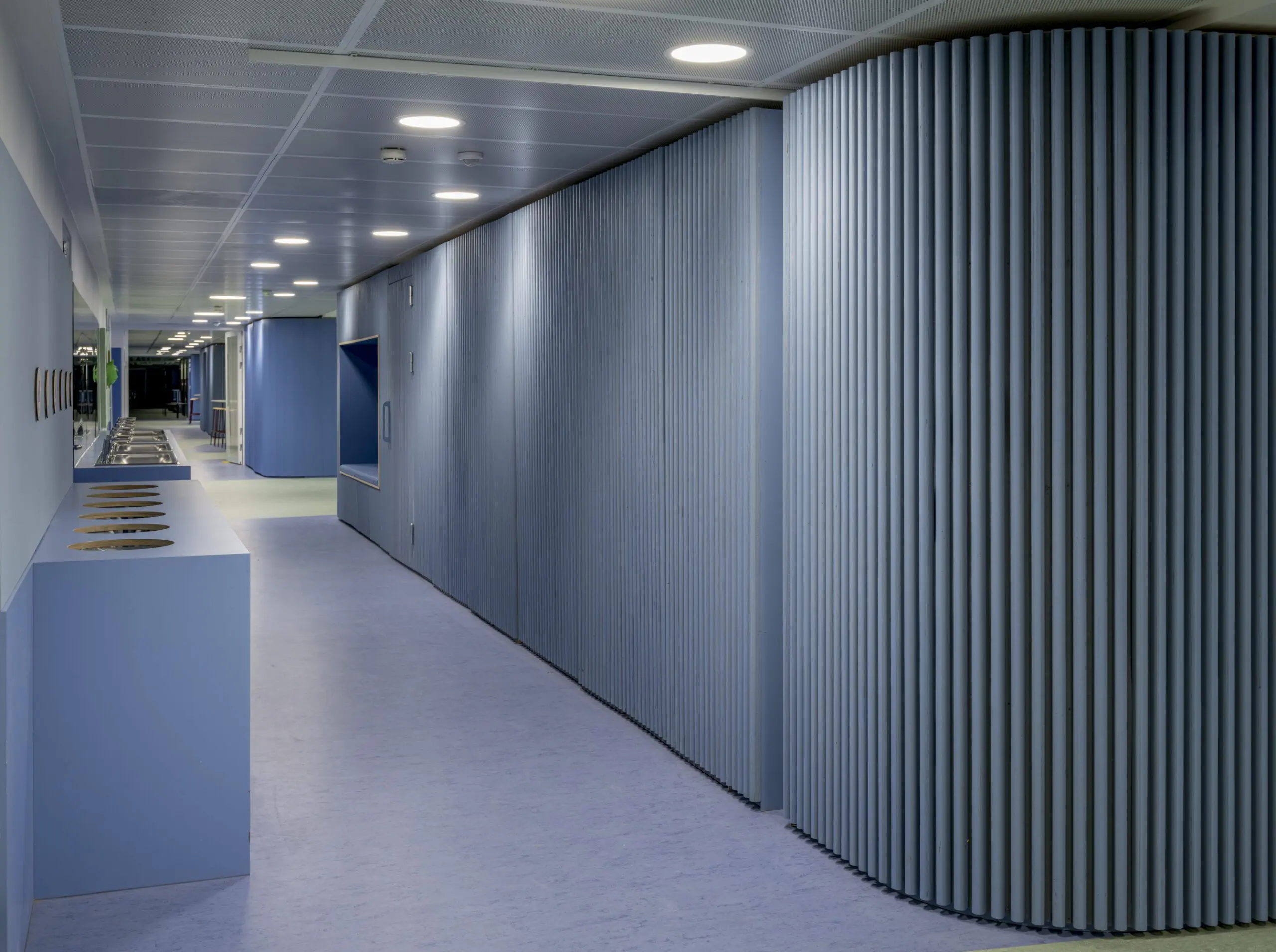

Valhøj School

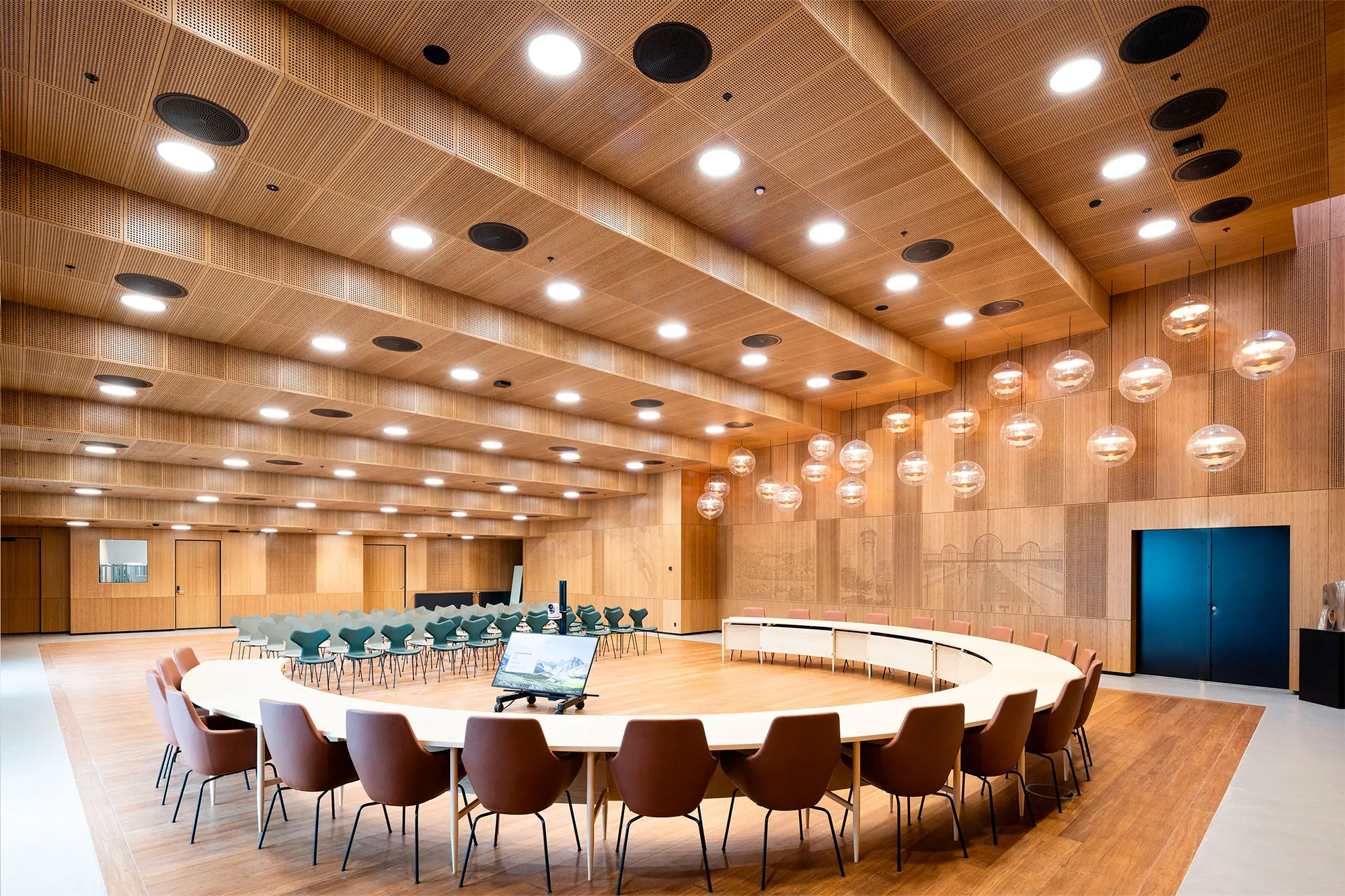

Høje-Taastrup City Hall
T-Hee is a unified design series available as both a recessed and surface-mounted luminaire.
T-Hee
Surface mounted
