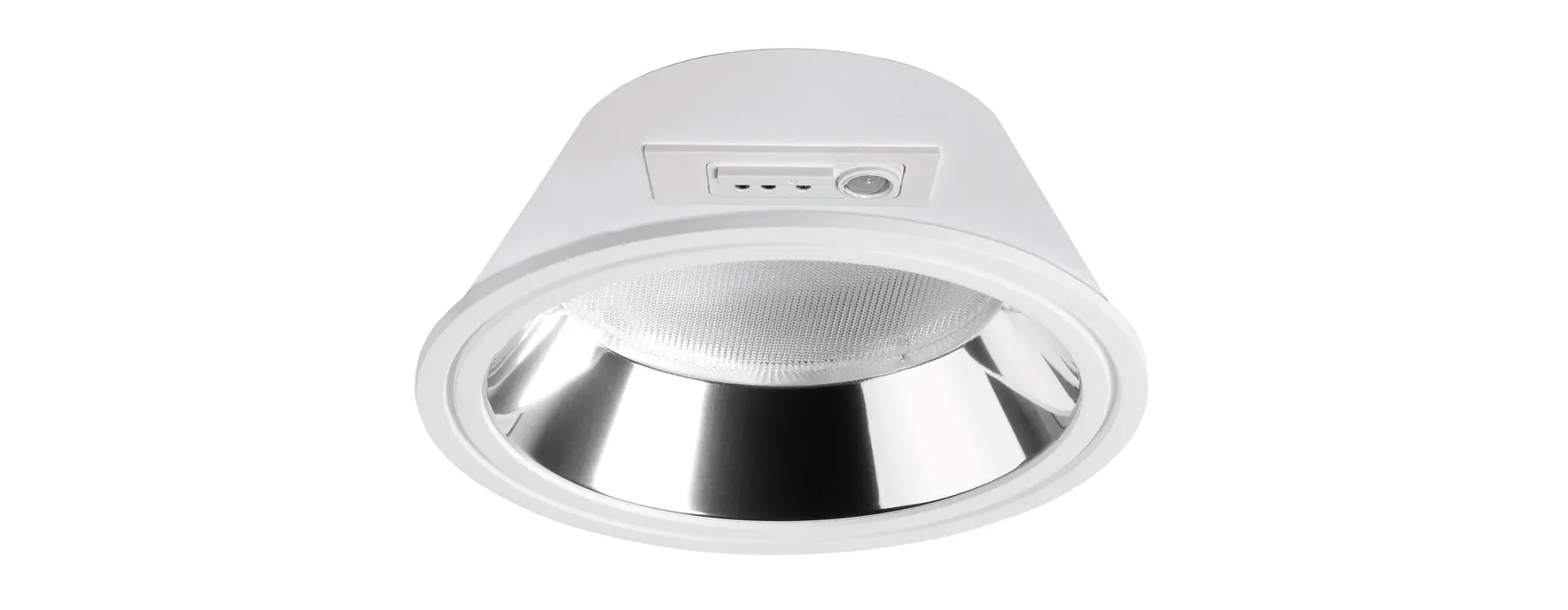

T-Prettus
T-Prettus is a popular downlight available in three different sizes. T-Prettus is particularly attractive due to its design and polished or matt reflector, which creates a diamond-like look. The light is also comfortable due to the anti-glare reflector. T-Prettus is suitable for corridors, entrances, hallways and more.
Installation
T-Prettus is for recessed ceiling installation. The downlight is connected directly or via through-wiring. Driver is external and must be connected to the downlight during installation.
Armature
T-Prettus is available in 3 different sizes: Ø166 x 113 mm, Ø216 x 116 mm or Ø266×139 mm and is made of steel. T-Prettus has a tightness class up to IP54. AC 220-240. T-Prettus is available in RAL9010 as standard.
LED information
T-Prettus is available with Ra80 - 3000K / 4000K, option Ra>90. Wattage of 15W - 33W depending on size selection. Lumen output up to 4000lm and 121 lm/W at 4000K. The downlight has a beam angle of 65° or 70° degrees depending on size selection. Operational lifetime (L80B10) 50,000 hours at 25 degrees.
Light control
T-Prettus available with On/Off / DALI
LED driver life expectancy 100,000 hours. The luminaire is certified under CIE EN 60598 1-2 & here under EN550 15/EMC
| Model: | T-Prettus |
| Size: | Ø166 x 113 mm |
| mA/W: | Standard - 15 - 19W |
| Optics: | 65° reflector |
| Ra / Kelvin: | Ra80/90 - 3000K / 4000K |
| Assembly: | Recessed |
| IP / IK: | IP20/40/54 |
| Colour: | Standard - RAL9010 |
| Material: | Steel |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / DALI / EasyAir |
| Luminous flux: | 110-118lm/W |
| Model: | T-Prettus |
| Size: | Ø216 x 116 mm |
| mA/W: | Standard - 19 - 24W |
| Optics: | Reflector 70° |
| Ra / Kelvin: | Ra80/90 - 3000K / 4000K |
| Assembly: | Recessed |
| IP / IK: | IP20/40/54 |
| Colour: | Standard - RAL9010 |
| Material: | Steel |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / DALI / EasyAir |
| Luminous flux: | 113-119lm/W |
| Model: | T-Prettus |
| Size: | Ø266 x 139 mm |
| mA/W: | Standard - 29 - 33W |
| Optics: | 65° reflector |
| Ra / Kelvin: | Ra80/90 - 3000K / 4000K |
| Assembly: | Recessed |
| IP / IK: | IP20/40/54 |
| Colour: | Standard - RAL9010 |
| Material: | Steel |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | On/Off / DALI / EasyAir |
| Luminous flux: | 112-121lm/W |
65° beam angle
T-Prettus

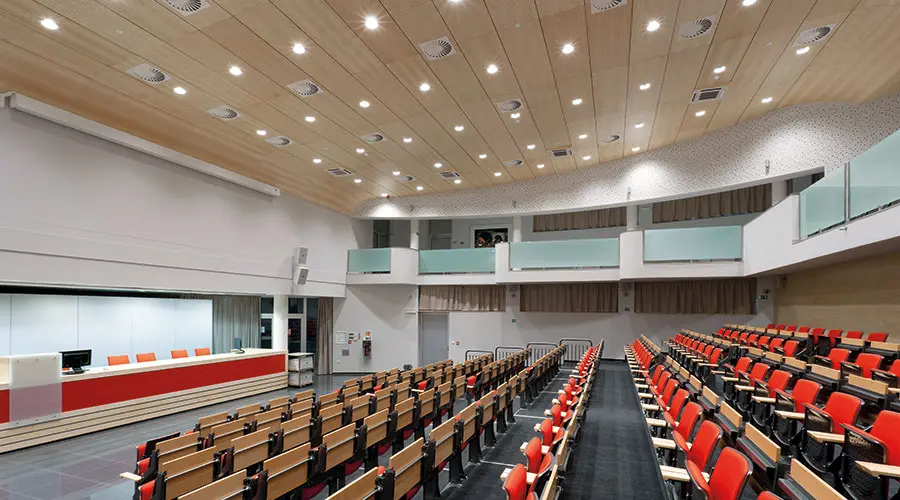

T-Prettus, Slovakia
