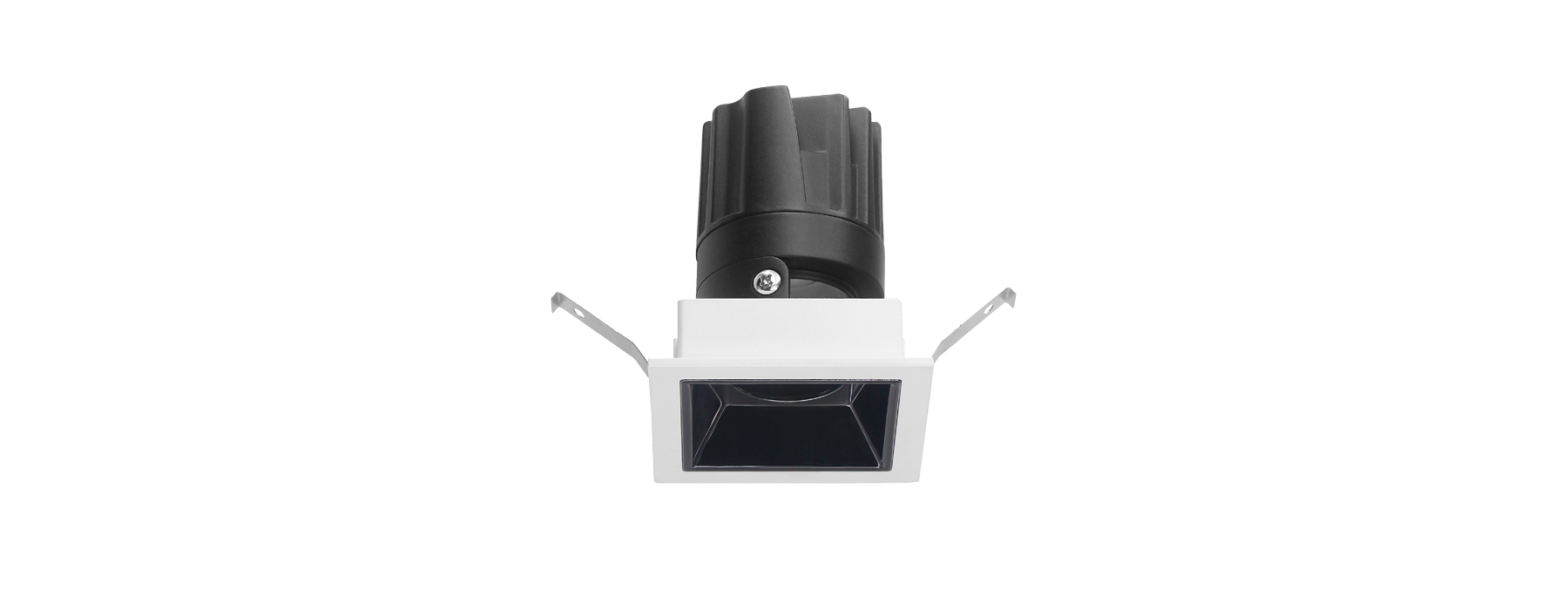

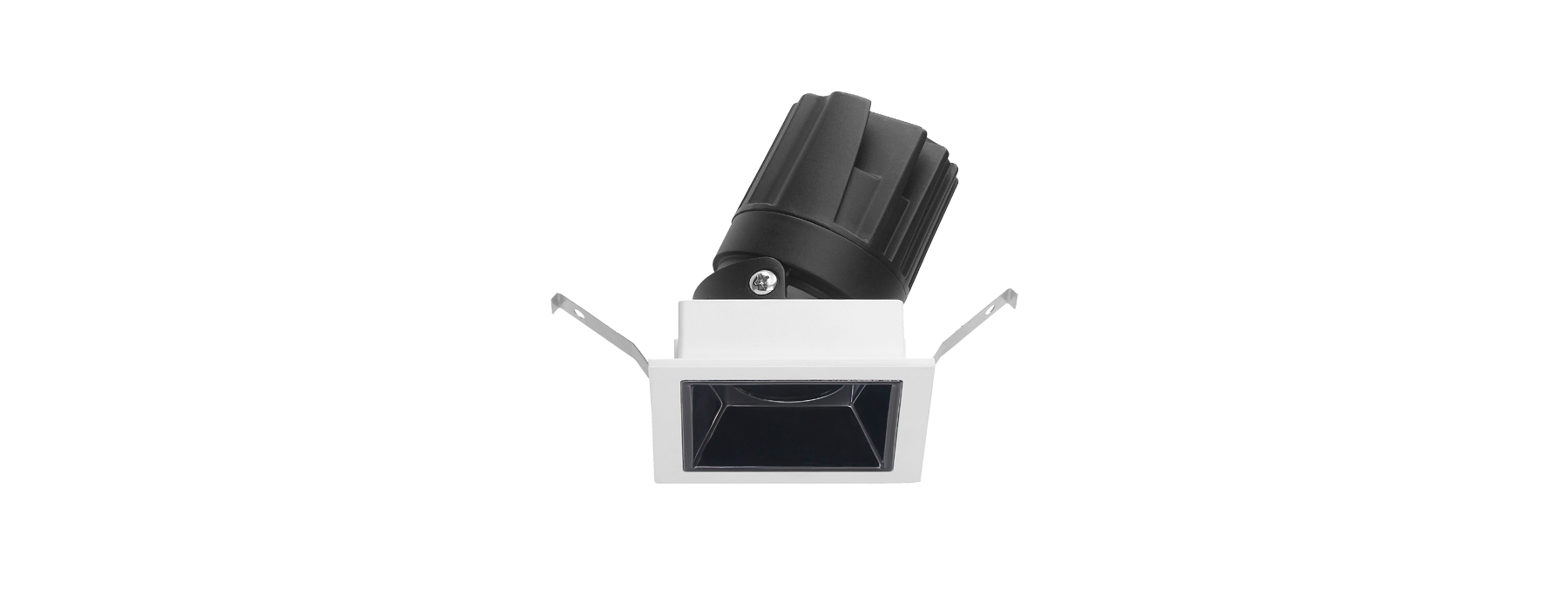

T-Modular Square is a further development of our popular downlight, T-Modular. T-Modular Square is designed with a square frame, but with the same efficient lighting properties. With T-Modular Square it is possible to adjust the light angle as the light source can be tilted 25° degrees. This makes the luminaire flexible and versatile, as the luminaire can be used as a wall washer, for example, or to emphasise or shield a specific focus in an environment.

Installation

Armature

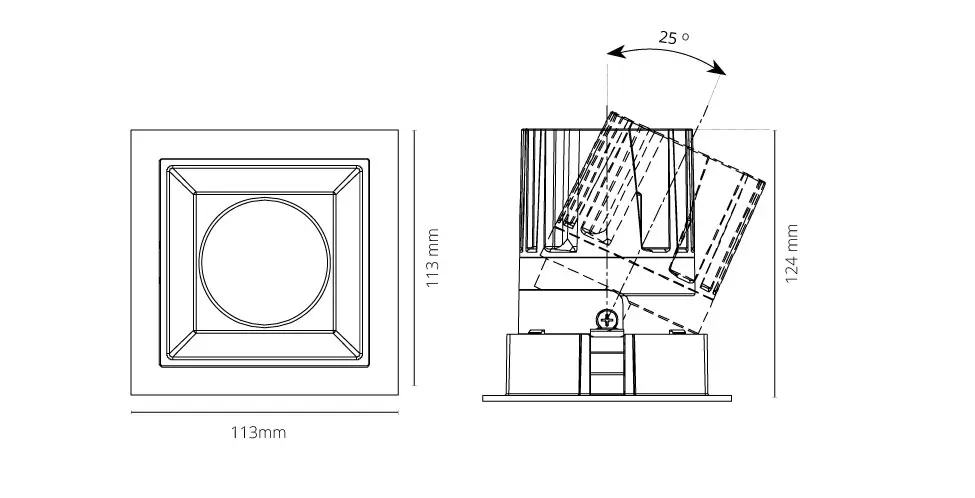

T-Modular Square measures (LxWxH) 85 x 85 x 95 mm or 113 x 113 x 128 mm and the luminaire is made of cast aluminium and weighs 0.3 kg and 0.6 kg depending on size. T-Modular Square has a tightness class of IP20 - option: IP40 and is impact resistant up to IK07. AC 220-240. Available in RAL9016 (white) and 9005 (black) as standard - other colours on request. Reflector colour - white, black, silver or gold.

LED information

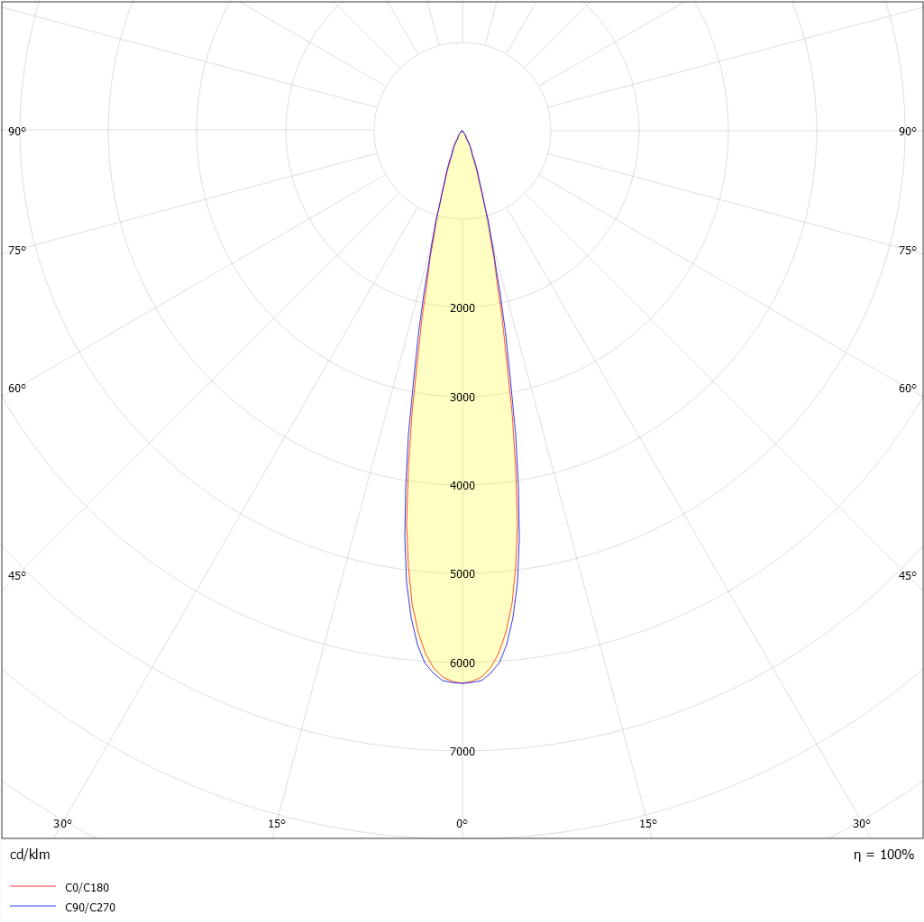

T-Modular Square is available with Ra80/90 - 3000/3500/4000K, option 2700-6500KC / Amber. Standard wattage from 10W-25W depending on size selection. Beam angle of 15°/ 24°/ 38°/ 60°.

Operational lifetime (L80B10) >50,000 hours at 25 degrees.

Light control

T-Modular Square is available with On/Off, Triac, DALI, 0-10V control.

LED driver expected lifespan 100,000 hours. Luminaire certification is under CIE EN 60598 1-2 and including EN550 15/EMC.

T-Modular is a complete design series available as a recessed, surface-mounted and pendant luminaire. The T-Modular series can be both discreet and simple, while at the same time appearing modern and prominent in its environment. This is due to the many expression options in the choice of colour, reflector and mounting options.
