T-Modular Superstructure

T-Modular

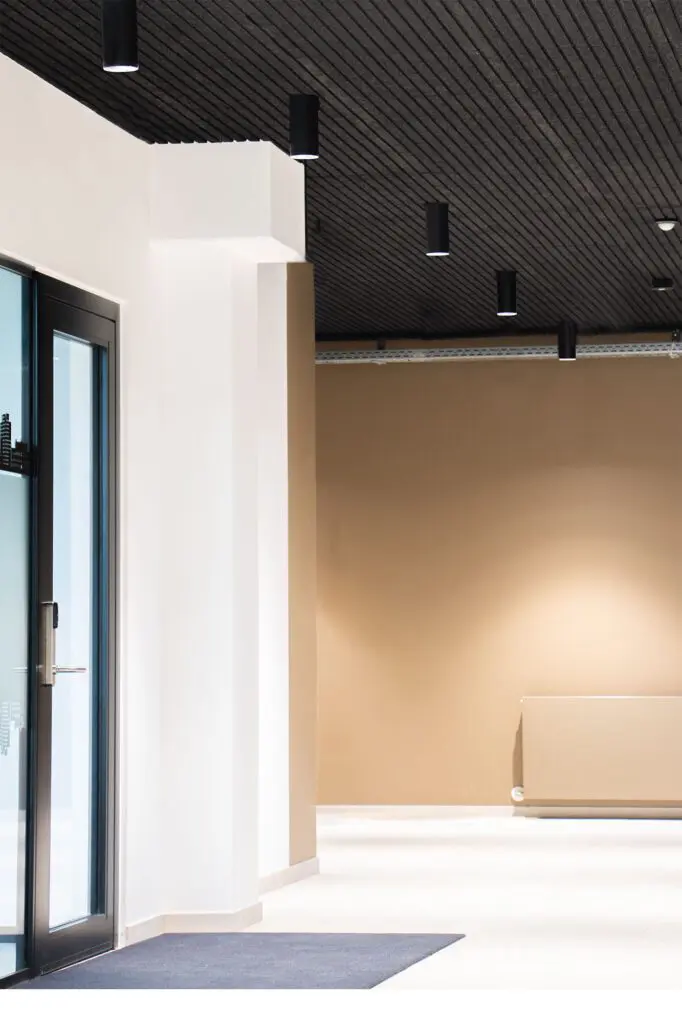

T-Modular is a complete design series available as a recessed, surface-mounted and pendant luminaire. T-Modular Surface-mounted is offered as standard in RAL9016 and RAL9005 with black, white, silver or gold reflector. T-Modular Surface-mounted can be both discreet and simple, while at the same time appearing modern and prominent in its environment. This is due to the many expression options in the choice of colour, reflector and mounting options. The surface-mounted luminaire is suitable for use in meeting rooms, offices, corridors, foyers and more.

Installation

Cylindrical luminaire with integrated driver for surface mounting. The luminaire is mounted via the supplied bracket and is connected directly.

Armature

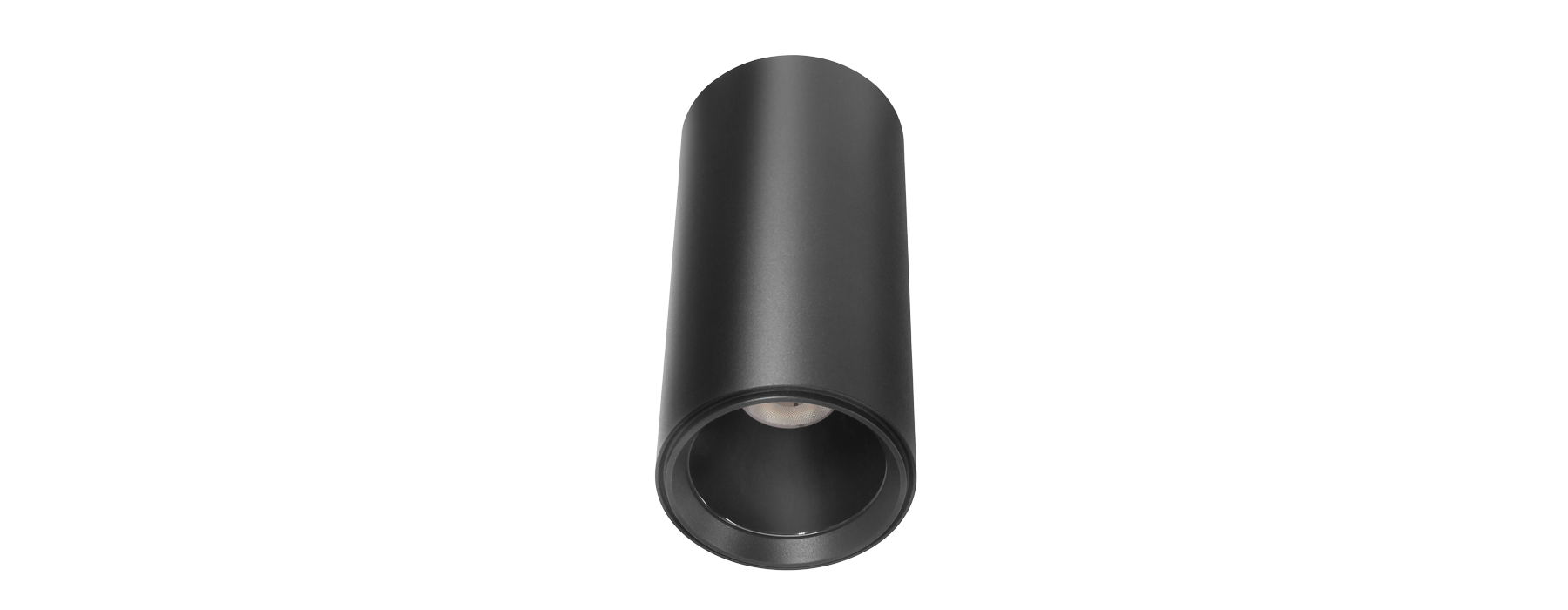

T-Modular Surface-mounted measures Ø90×190 mm and is offered as standard in RAL9016 and 9005. The luminaire is available with reflector in white / black / silver / gold. The luminaire is made of aluminium and has a tightness class of IP20 / IP40 and is impact resistant up to IK07. AC 220-240.

LED information

T-Modular Påbyg fås som standard med 250mA/10W / 500mA/20W / 600mA/25W i Ra80 – 3000K eller 4000K / Option: Ra90. T-Modular Påbyg fås med beam angle på 15°/ 24°/ 38° eller 60° spredning. Operationel levetid (L80B10) >50.000 timer ved ta 25 grader.

Light control

T-Modular Superstructure available with On/Off / DALI

LED driver life expectancy >50,000 hours. The luminaire's certification is under CIE EN 60598 1-2 and including EN550 15/EMC.

Model:	T-Modular
Size:	Ø90 x 190 mm
mA/W:	Standard - 250mA/13W / 600mA/25W
Optics:	15° / 24° / 38° / 60° beam angle
Ra / Kelvin:	Ra80 – 3000K / 4000K / Option: Ra90
Assembly:	Surface mounted
IP / IK:	IP20 - Option: IP40 / IK07
Colour:	Standard - RAL9005 / RAL9016 Option: Reflektorfarve – hvid, sort, sølv eller guld
Material:	Aluminium
Weight kg:	1kg
IEC62717 (L80B10):	>50,000h at 25 degrees
Connection:	Direct
Steering:	On/Off
Starting current / Leakage current:	0 peak - 0 us / 0mA
Standby power:	0 W
Flicker-free:	Pst LM: < 1 / SVM: < 0.04
Fuse C10:	40 per fuse
Luminous flux:	80-130lm/W

Model:	T-Modular
Size:	Ø90 x 190 mm
mA/W:	Standard - MAX 18W
Optics:	15° / 24° / 38° / 60° beam angle
Ra / Kelvin:	Ra80 – 3000K / 4000K / Option: Ra90
Assembly:	Surface mounted
IP / IK:	IP20 - Option: IP40 / IK07
Colour:	Standard - RAL9005 / RAL9016 Option: Reflektorfarve – hvid, sort, sølv eller guld
Material:	Aluminium
Weight kg:	1kg
IEC62717 (L80B10):	>50,000h at 25 degrees
Connection:	Direct
Steering:	DALI
Starting current / Leakage current:	2.75A peak - 190 us / 0.2mA
Standby power:	0.5 W
Flicker-free:	Pst LM: < 1 / SVM: < 0.04
Fuse C10:	59 per fuse
Luminous flux:	80-130lm/W
