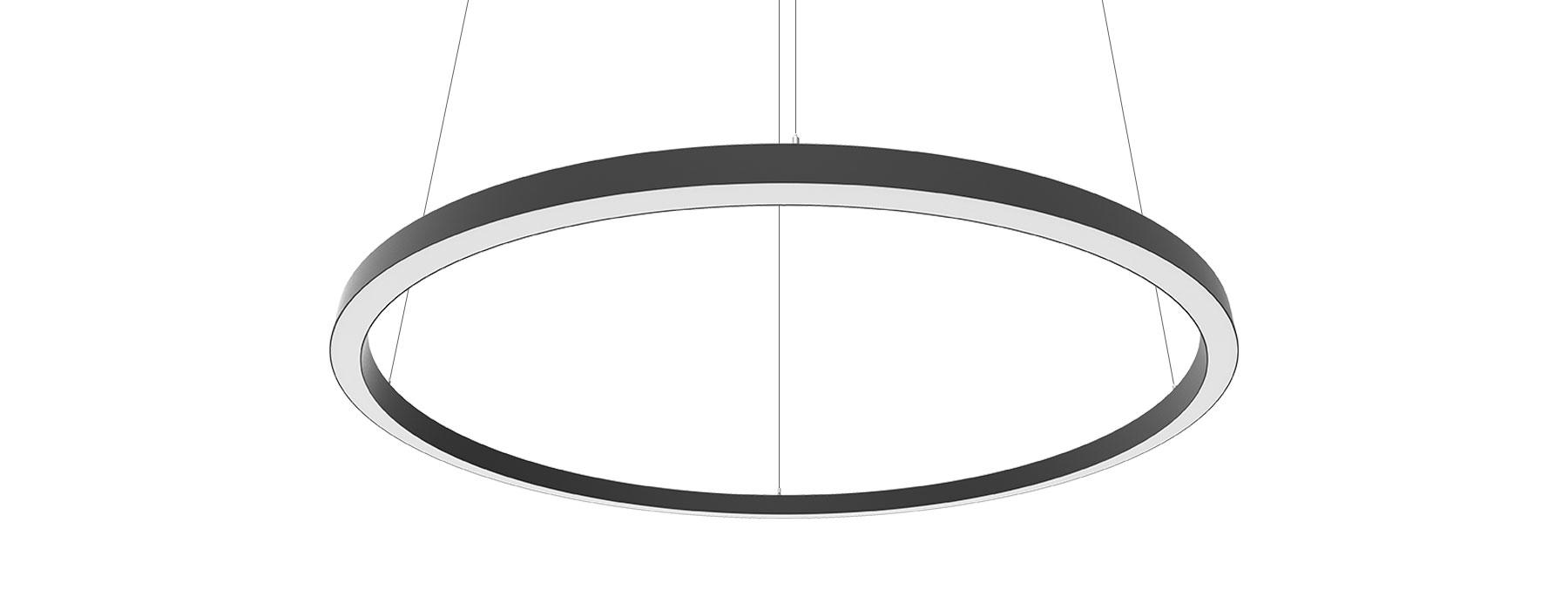

T-Circle
T-Circle is the perfect choice for lighting solutions where a decorative yet simple expression is desired. This is partly due to the luminaire's design and expression. T-Circle is available both surface-mounted and recessed in 4 different sizes and in both black and white. T-Circle is suitable for lighting living rooms, receptions, foyers and more.
Installation
Circular design luminaire for suspended in wire. Mounting bracket and wire included for installation. The luminaire is connected directly. Driver is integrated in the luminaire itself.
Armature
T-Circle 53.6-60 is available as standard in 4 different sizes - Ø600 mm, Ø900 mm, Ø1200 mm and Ø1800 mm with a height of 60 mm. The luminaire is made of aluminum. T-Circle has a tightness class of IP20 and is impact resistant up to IK05. AC 220-240. The luminaire is available in RAL9003 (white) and RAL9005 (black) as standard.
LED information
T-Circle is available with Ra80 - Option: Ra90 - 2700K / 3000K / 4000K. Available as standard with wattage 60W. 90lm/W at 4000K. T-Circle is available with beam angle of 100° degree spread. Operational lifetime (L80B10) 50,000 hours at 25 degrees.
Light control
T-Circle is available with On/Off
| Model: | T-Circle |
| Size: | Ø600 x 53.6 x 60.4mm |
| mA/W: | Standard - 60W |
| Optics: | Opal louvre - 100° beam angle - Standard - up/down light |
| Ra / Kelvin: | Ra80 - Option: Ra90 - 2700K / 3000K / 4000K |
| Assembly: | Suspended - Option: Wire / Rosette |
| IP / IK: | IP20 / IK05 |
| Color: | Standard - RAL9003 / RAL9005 |
| Material: | Aluminum |
| Weight kg: | 2.3 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off |
| Starting current / Leakage current: | 9.1A peak - 174us / 0.38mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.004 / SVM: 0.005 |
| Fuse C10: | 23 per fuse |
| Luminous flux: | 90lm/W |
| Model: | T-Circle |
| Size: | Ø900 x 53.6 x 60.4mm |
| mA/W: | Standard - 60W |
| Optics: | Opal louvre - 100° beam angle - Standard - up/down light |
| Ra / Kelvin: | Ra80 - Option: Ra90 - 2700K / 3000K / 4000K |
| Assembly: | Suspended - Option: Wire / Rosette |
| IP / IK: | IP20 / IK05 |
| Color: | Standard - RAL9003 / RAL9005 |
| Material: | Aluminum |
| Weight kg: | 3.4 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off |
| Starting current / Leakage current: | 9.1A peak - 174us / 0.38mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.004 / SVM: 0.005 |
| Fuse C10: | 23 per fuse |
| Luminous flux: | 90lm/W |
| Model: | T-Circle |
| Size: | Ø1200 x 53.6 x 60.4mm |
| mA/W: | Standard - 60W |
| Optics: | Opal louvre - 100° beam angle - Standard - up/down light |
| Ra / Kelvin: | Ra80 - Option: Ra90 - 2700K / 3000K / 4000K |
| Assembly: | Suspended - Option: Wire / Rosette |
| IP / IK: | IP20 / IK05 |
| Color: | Standard - RAL9003 / RAL9005 |
| Material: | Aluminum |
| Weight kg: | 4.6 kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off |
| Starting current / Leakage current: | 9.1A peak - 174us / 0.38mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.004 / SVM: 0.005 |
| Fuse C10: | 23 per fuse |
| Luminous flux: | 90lm/W |
| Model: | T-Circle |
| Size: | Ø1800 x 53.6 x 60.4mm |
| mA/W: | Standard - 60W |
| Optics: | Opal louvre - 100° beam angle - Standard - up/down light |
| Ra / Kelvin: | Ra80 - Option: Ra90 - 2700K / 3000K / 4000K |
| Assembly: | Suspended - Option: Wire / Rosette |
| IP / IK: | IP20 / IK05 |
| Color: | Standard - RAL9003 / RAL9005 |
| Material: | Aluminum |
| Weight kg: | 6.9kg |
| IEC62717 (L80B10): | >50,000h at 25 degrees |
| Connection: | Direct |
| Steering: | On/Off |
| Starting current / Leakage current: | 9.1A peak - 174us / 0.38mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.004 / SVM: 0.005 |
| Fuse C10: | 23 per fuse |
| Luminous flux: | 90lm/W |
Up/Down light
100° beam angle
Reference: T-Circle, Odense Congress Center
