T-Model A

T-Model A

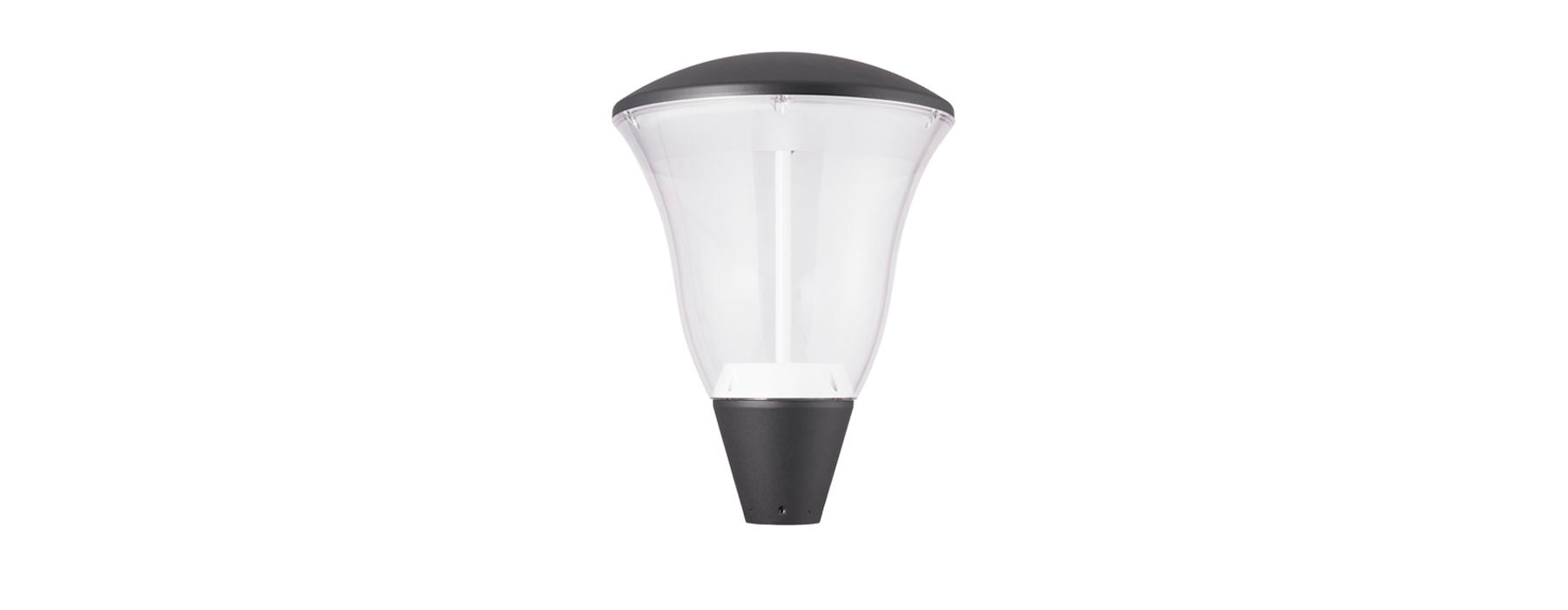

T-Model A is a modern and efficient street lighting luminaire. The design of the luminaire housing is based on the traditional and timeless cone shape. The sculptural design of the luminaire means that T-Model A creates a good atmosphere from the city centre to the suburbs.

Installation

Design luminaire for direct pole mounting - available for top mounting Ø60/76 mm. The luminaire is connected directly. Cable length is customised for each project.

Armature

T-Model A is available in size 490 x 440 x 600 mm, is made of aluminium and tempered glass and weighs 9 kg. T-Model A comes standard in the colour RAL7024. The luminaire has an IP66 rating and is impact resistant up to IK09. AC 220-240. The luminaire is available with both asymmetric II or symmetric V optics. Class II.

LED information

T-Model A comes standard with Ra70/80 - 3000/4000K. Standard wattage 20W, 40W, 60W, 70W, 80W, 90W or 100W. Operational lifetime (L90B10) 100,000 hours at 25 degrees.

Light control

T-Model A comes standard with DALI, Dynadim (22:00-06:00, 50%) or Smartcity

LED driver expected lifespan 50,000 hours. Luminaire certification is under CIE EN 60598 1-2 and including EN550 15/EMC.

Model: T-Model A
Size: 490 x 440 x 600 mm
mA/W: Standard - 20W / 40W / 60W / 70W / 80W / 90W / 100W
Optics: Symmetrical - Option: Asymmetrical
Ra/Kelvin: Ra70/80 - 3000K / 4000K
Assembly: Top mounting on mast - Ø60 / 76 mm
IP: 66
Colour: Standard - RAL7024
Connection: Direct - cable
Steering: DALI / 1-10V / Dynadim (22:00-06:00, 50%) or Smartcity
IEC62717 (L90B10): 100,000h at ta 25 degrees
Material: Aluminium - tempered glass
Weight kg: 9kg
Fuse B16: Standard - <48 per fuse
Luminous flux: 120-140 lm/W

Data sheet
Lightfiles
Tender text

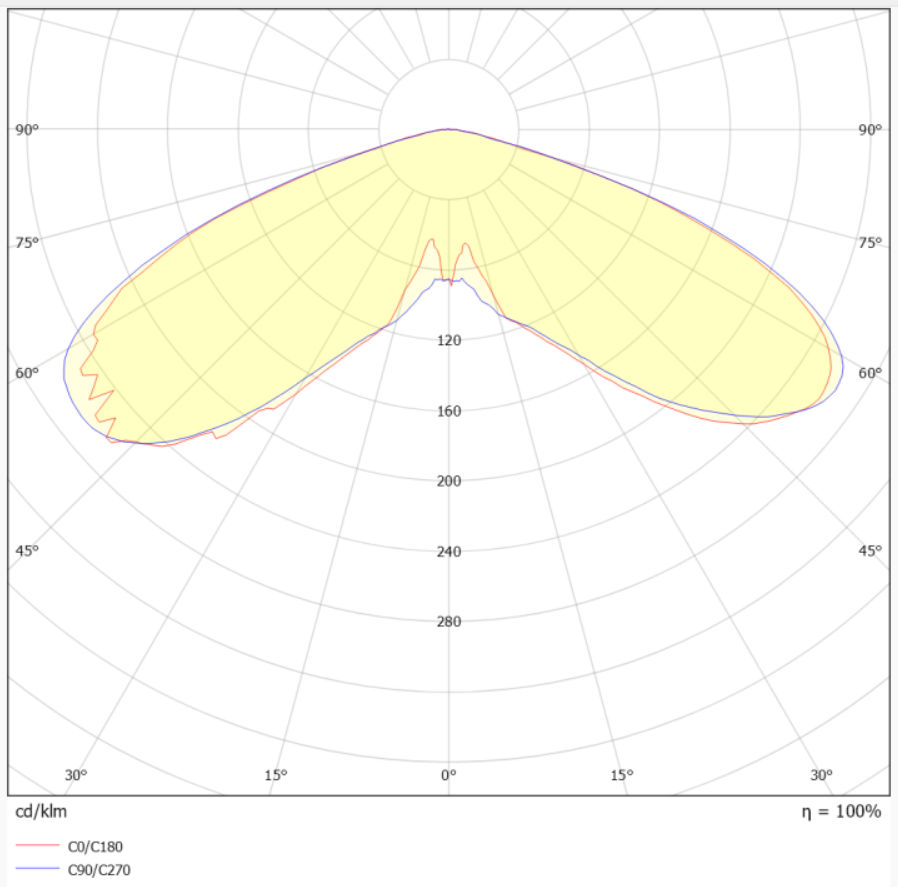

T-Model A - T5 lens

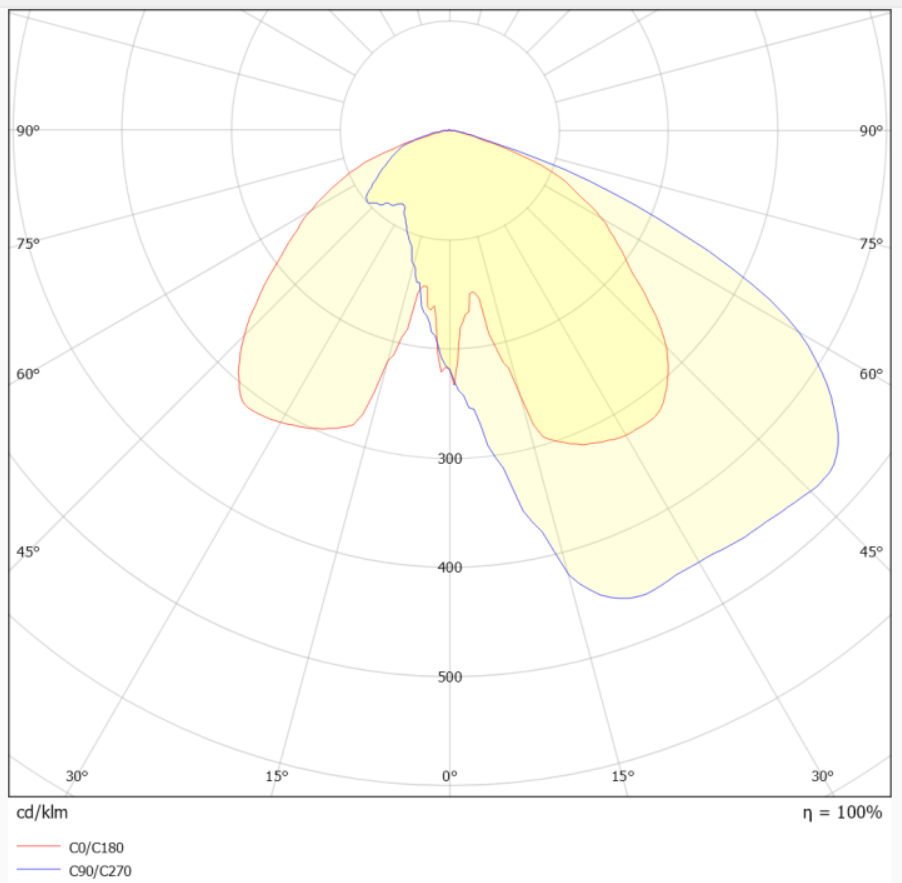

T-Model A - T4 lens
