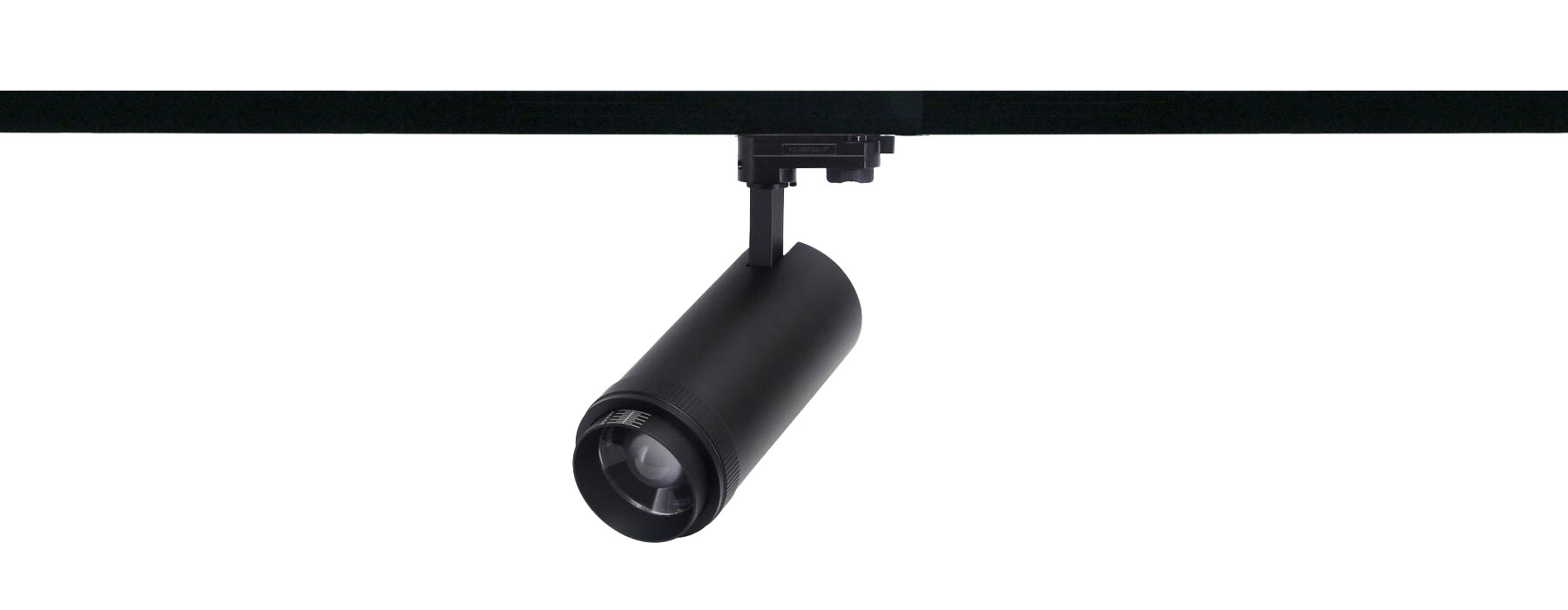

T-Arche Zoom

T-Arche Zoom is part of the T-Arche tracklight series, which has a minimalist and simple look and is offered as standard in RAL9011 and RAL9016. T-Arche Zoom allows you to adjust the beam angle of the light source from 15° to 55°.

Installation

Spotlight for direct mounting to 3F global track that can be mounted directly on the ceiling. The spotlight is connected directly. The spotlight can rotate 360 degrees and can be tilted 60 degrees.

Armature

T-Arche Zoom measures Ø90 x 190mm, is made of aluminum and weighs 1.2 kg. The spot has an IP20 rating and is impact resistant up to IK07. AC 220-240. T-Arche Dynamic is available in RAL9016 (white) and RAL9011 (black) as standard.

LED information

T-Arche Zoom is available with Ra80 or Ra90 - 2700K/3000k/4000K. Standard wattage is 15W, 20W. Adjustable Zoom lens from 15° to 55° beam angle. Integrated driver. Operational lifetime (L80B10) 100,000 hours at 25 degrees.

Light control

T-Arche Zoom is available with On/Off, DALI, 0-10V control.

LED driver life expectancy >100,000 hours. The luminaire's certification is under CIE EN 60598 1-2 and including EN550 15/EMC.

Model: T-Arche Zoom
Size: Ø90 x 190 mm
mA/W: Standard - 350mA/15W / 500mA/20W
Optics: Zoom lens 15-55° beam angle
Ra / Kelvin: Ra80/90 - 2700K / 3000K / 4000K
Assembly: 3F global rail
IP / IK: IP20 / IK07
Color: Standard - RAL9011 / RAL9016
Material: Aluminum
Weight kg: 1.2 kg
IEC62717 (L80B10): 100,000h at ta 25 degrees
Connection: Direct
Steering: On/Off / DALI / 0-10V
Starting current / Leakage current: 2.425A peak - 202us / 0.2mA
Standby power: <0.5W
Flicker-free: Pst LM: 0.000 / SVM: 0.003
Fuse C10: 59 per fuse
Luminous flux: 70-100lm/W

Installation instructions

T-arm Zoom - Ø90 mm

T-Arche is a tracklight series whose design is contemporary and future-proof. The T-Arche tracklight range offers a variety of spots with a perfect combination of functionality and good design.
