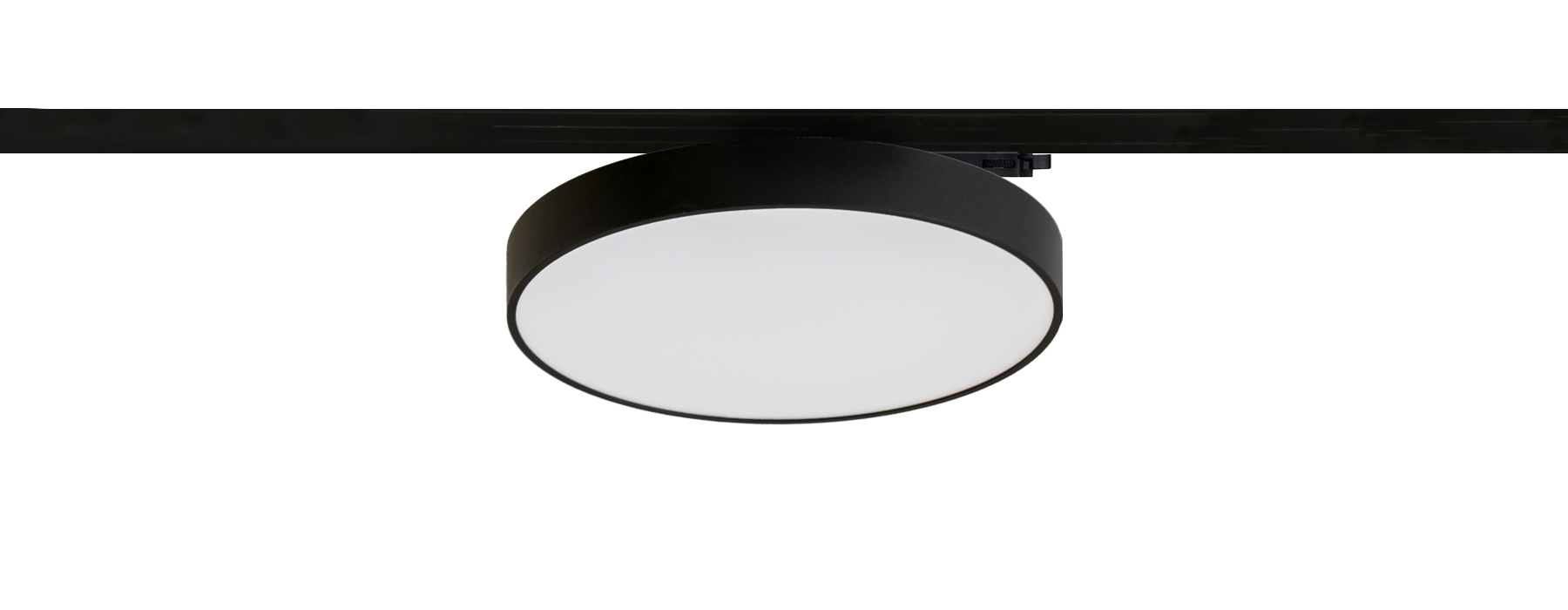

T-Arche Disc
T-Arche Disc is part of the T-Arche tracklight series, which has a minimalist and simple look and is offered as standard in RAL9011. With T-Arche Disc it is possible to create effective ambient lighting in environments with 3F Global tracks, such as offices, showrooms and retail environments.
Installation
Tracklight direct mounting for 3F track. 3F track is a contact track that can be mounted directly on the ceiling or suspended. The tracklight is connected directly to the track.
Armature
T-Arche Disc measures Ø300 x 38 x 114mm, is made of aluminum and weighs 1.7 kg. The tracklight has an IP20 rating and is impact resistant up to IK07. AC 220-240. T-Arche Disc is available in RAL9011 (black) as standard.
LED information
T-Arche Disc is available with Ra80 / Ra90 - 2700K, 3000K, 4000K. Standard wattage is 30W. Beam angle of 120°. Integrated driver in adapter. Operational lifetime (L80B10) 100,000 hours at 25 degrees.
Light control
T-Arche Disc available with On/Off control
LED driver life expectancy >100,000 hours. The luminaire certification is under CIE EN 60598 1-2 & here under EN550 15/EMC
| Model: | T-Arche Disc |
| Size: | Ø300 x 38 x 114mm |
| mA/W: | Standard - 30W |
| Optics: | 120° beam angle |
| Ra / Kelvin: | Ra80/90 - 2700K / 3000K / 4000K |
| Assembly: | 3F global rail |
| IP / IK: | IP20 / IK07 |
| Color: | Standard - RAL9011 |
| Material: | Aluminum |
| Weight kg: | 1.7 kg |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | On/Off |
| Starting current / Leakage current: | 2.025A peak - 70us / 0.67mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.032 / SVM 0.011 |
| Fuse C10: | 39 per fuse |
| Luminous flux: | 80-120 lm/W |
T-Arche Disc - Ø300 mm
T-Arche is a tracklight series whose design is contemporary and future-proof. The T-Arche tracklight range offers a variety of spots with a perfect combination of functionality and good design.
