In-line 95-75 Fixed ceilings
The in-line 95-75 is suitable for areas with closed and fixed ceilings, which are easily integrated into the ceiling during the construction phase, and which are also easy to use in tendering as well as in design. The profile is supplied with outside clips for quick and efficient installation in the ceiling. The profiles are made of extruded aluminium with cast end caps. All profiles can be supplied in custom colours and lengths by agreement.
LED driver expected lifespan 100,000 hours.
| Model: | In-line 95-75 Fixed ceilings |
| Size: | 1200mm x 95 x 75 |
| mA/W: | Standard – 20W |

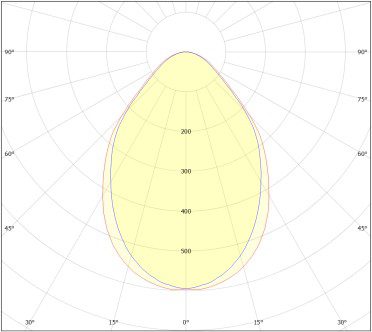

| Optics: | Glare Control |
| Ra / Kelvin: | Ra90 – 3000K / 4000K – Option: Ra80 |
| Assembly: | Recessed |
| IP / IK: | IP20 / IK05 |
| Colour: | Luminaire housing standard – RAL9016 / RAL9005 / RAL9006 |
| Material: | Aluminium |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | DALI |
| Starting current / Leakage current: | 8.4A peak – 170µs/ 0.61mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.015 / SVM: 0.001 |
| Fuse C10: | 39 per fuse |
| Luminous flux: | 2315 lm |
| Model: | In-line 95-75 Fixed ceilings |
| Size: | 1500mm x 95 x 75 |
| mA/W: | Standard – 25W |
| Optics: | Glare Control |
| Ra / Kelvin: | Ra90 – 3000K / 4000K – Option: Ra80 |
| Assembly: | Recessed |
| IP / IK: | IP20 / IK05 |
| Colour: | Luminaire housing standard – RAL9016 / RAL9005 / RAL9006 |
| Material: | Aluminium |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | DALI |
| Starting current / Leakage current: | 8.4A peak – 170µs/ 0.61mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.015 / SVM: 0.001 |
| Fuse C10: | 39 per fuse |
| Luminous flux: | 2895lm |
| Model: | In-line 95-75 Fixed ceilings |
| Size: | 1800mm x 95 x 75 |
| mA/W: | Standard – 30W |
| Optics: | Glare Control |
| Ra / Kelvin: | Ra90 – 3000K / 4000K – Option: Ra80 |
| Assembly: | Recessed |
| IP / IK: | IP20 / IK05 |
| Colour: | Luminaire housing standard – RAL9016 / RAL9005 / RAL9006 |
| Material: | Aluminium |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | DALI |
| Starting current / Leakage current: | 8.4A peak – 170µs/ 0.61mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.015 / SVM: 0.001 |
| Fuse C10: | 39 per fuse |
| Luminous flux: | 3470lm |
| Model: | In-line 95-75 Fixed ceilings |
| Size: | 2400mm x 95 x 75 |
| mA/W: | Standard – 40W |
| Optics: | Glare Control |
| Ra / Kelvin: | Ra90 – 3000K / 4000K – Option: Ra80 |
| Assembly: | Recessed |
| IP / IK: | IP20 / IK05 |
| Colour: | Luminaire housing standard – RAL9016 / RAL9005 / RAL9006 |
| Material: | Aluminium |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | DALI |
| Starting current / Leakage current: | 8.4A peak – 170µs/ 0.61mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.015 / SVM: 0.001 |
| Fuse C10: | 39 per fuse |
| Luminous flux: | 4630lm |
Standard profile length on In-line profile
At Teamtronic, we have put together various kits that can easily be combined according to your needs and wishes. We offer EasyAir kit, BLE sensor kit, IP44 kit and more. All our kits can easily be integrated into our profiles. Description of brands and placement is done in co-operation with the electrical installer, design architects or consulting engineers. We guarantee that ceilings, lighting and technical components are always in accordance with your wishes and needs before production starts. If you request kits that are not part of our standard kits, we will find a solution.
