Ecophon Focus Ds, lines 63-70

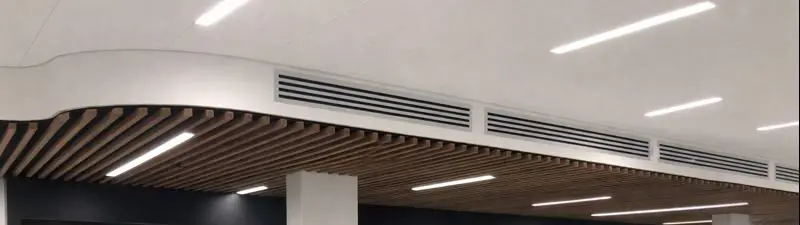

In-line 63-70 profile for the Ecophon Focus Ds ceiling system is a modular profile system that integrates easily into the ceiling below
the construction phase, and which is also easy to use in tendering as well as in design. The profile is delivered as standard
The module lengths are 1192 mm, 1492 mm and 1792 mm. All In-line profiles can be supplied in custom lengths.
by agreement.
LED driver expected lifespan 100,000 hours.
| Model: | Ecophon Focus Ds, lines 63-70 |
| Size: | 1192mm x 63 x 70 |
| mA/W: | Standard – 20W |
| Optics: | Glare Control |
| Ra / Kelvin: | Ra90 – 3000K / 4000K – Option: Ra80 |
| Assembly: | Suspended |
| IP / IK: | IP20 / IK05 |
| Colour: | Luminaire housing standard – RAL9016 / RAL9005 / RAL9006 |
| Material: | Aluminium |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | DALI |
| Starting current / Leakage current: | 8.4A peak – 170µs/ 0.61mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.015 / SVM: 0.001 |
| Fuse C10: | 39 per fuse |
| Luminous flux: | 2360lm |
| Model: | Ecophon Focus Ds, lines 63-70 |
| Size: | 1492mm x 63 x 70 |
| mA/W: | Standard – 25W |
| Optics: | Glare Control |
| Ra / Kelvin: | Ra90 – 3000K / 4000K – Option: Ra80 |
| Assembly: | Suspended |
| IP / IK: | IP20 / IK05 |
| Colour: | Luminaire housing standard – RAL9016 / RAL9005 / RAL9006 |
| Material: | Aluminium |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | DALI |
| Starting current / Leakage current: | 8.4A peak – 170µs/ 0.61mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.015 / SVM: 0.001 |
| Fuse C10: | 39 per fuse |
| Luminous flux: | 2860lm |
| Model: | Ecophon Focus Ds, lines 63-70 |
| Size: | 1792mm x 63 x 70 |
| mA/W: | Standard – 30W |
| Optics: | Glare Control |
| Ra / Kelvin: | Ra90 – 3000K / 4000K – Option: Ra80 |
| Assembly: | Suspended |
| IP / IK: | IP20 / IK05 |
| Colour: | Luminaire housing standard – RAL9016 / RAL9005 / RAL9006 |
| Material: | Aluminium |
| IEC62717 (L80B10): | 100,000h at ta 25 degrees |
| Connection: | Direct |
| Steering: | DALI |
| Starting current / Leakage current: | 8.4A peak – 170µs/ 0.61mA |
| Standby power: | <0.5W |
| Flicker-free: | Pst LM: 0.015 / SVM: 0.001 |
| Fuse C10: | 39 per fuse |
| Luminous flux: | 3440lm |
Standard profile length on In-line profile
At Teamtronic, we have put together various kits that can easily be combined according to your needs and wishes. We offer EasyAir kit, BLE sensor kit, IP44 kit and more. All our kits can easily be integrated into our profiles. Description of brands and placement is done in co-operation with the electrical installer, design architects or consulting engineers. We guarantee that ceilings, lighting and technical components are always in accordance with your wishes and needs before production starts. If you request kits that are not part of our standard kits, we will find a solution.
